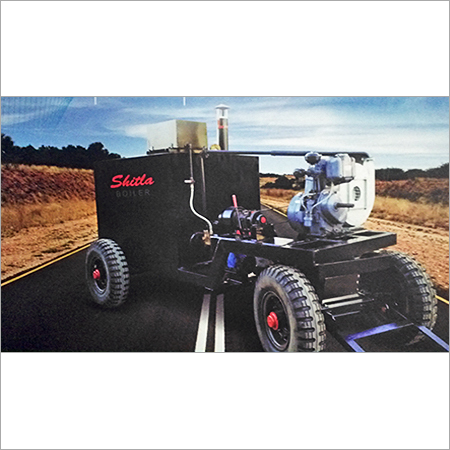

Bitumen Pressure Distributor
5.50000 INR/Unit
Product Details:
X
Bitumen Pressure Distributor Price And Quantity
- 1 Unit
- 5.50000 INR/Unit
Bitumen Pressure Distributor Trade Information
- Ahmedabad
- 4 - 5 Unit Per Month
- 1 Months
- All India
- ISO
Product Description
With the help of our world-class infrastructure facility, we are engaged in providing robustly-built Bitumen Pressure Distributor. This machine is designed in various grades, capacities and specifications as per the needs of clients. Bitumen Pressure Distributor is widely used for the coating of hot & emulsion bitumen on the surface.
The Bitumen Pressure Distributor Machine is able to apply a uniform coat of emulsion and hot bitumen on the surface. These distributors are specially designed for track coat and spraying application in roads. The distributor has a 2"x 2" size positive displacement gear pump with output 350 liters of bitumen per minute. To operate under constant pressure, we provide our Bitumen Pressure Distributor with bitumen pump, auxiliary engine and a tank mounting variable spray bar. These distributors are designed to offer a uniform and constant rate of hot bitumen on the specified surface area.
Product Features of Bitumen Pressure Distributor:
1) Hassle-free performance
2) Longer functional life
3) Low maintenance
4) Energy efficiency
Technical Specifications:
1) Bitumen Pump : 2" x 2" size Positive displacement gear Pump with output of 350 Lit. / Min. (Max)
2) Driving Unit : Kirloskar Engine Model HA-294, 25 BHP Air Cooled Engine Vertical type
3) Bitumen Spraying Pressure : 0 to 6 Kg/cm2
4) Tachometer : Slow Speed 0.5 meter / min
5) Capacity : 7000 Liters
6) Spray bar width : 2.8 meter Standard
7) Adjustment Width : 2.8 meter to 4.1 meter with extension
8) Nozzle Distance : 225 mm Nozzle c/c
9) Controlling Distance : Pneumatic operation of nozzle
10) Air Pressure Gauge : 0-10 kg / cm2
11) MODEL : SBP - 4000
12) Length : 2400 mm
13) Width : 1800 mm
14) Height : 1500 mm
15) Capacity : 4000 LTrs
16) Man Hole : 600 mm
17) Insulation : 50 mm
18) Shape : Round/Ellipse
19) Type : Compressed air
20) Burner Fuel tank : 50Ltrs.
21) Engine Fuel tank : 20Ltrs.
22) Service tank : 20Ltrs.
23) Wheel Base : 3760mm
24) Clear chassis Length : 5000mm
