Bitumen Spraying Machine
200000.00 INR/Unit
Product Details:
- Computerized No
- Power 8 Horsepower (HP)
- Weight 4800 Kilograms (kg)
- Click to view more
X
Bitumen Spraying Machine Price And Quantity
- 1 Unit
- 200000.00 INR/Unit
Bitumen Spraying Machine Product Specifications
- 8 Horsepower (HP)
- 4800 Kilograms (kg)
- No
Bitumen Spraying Machine Trade Information
- Ahmedabad
- 4-5 Unit Per Month
- 1 Months
- All India
- ISO
Product Description
We are glad to introduce ourselves as one of the reputed manufacturers, suppliers and exporters of Bitumen Sprayer, Full Circulating bitumen Sprayer Widely used for surface dressing applications and tack coat work in road construction, offered sprayer is provided with the capacity of 2.5 ton. Offered sprayer is also applicable in emulsion and bitumen related applications. We manufacture these sprayers using premium quality MS Sheet of 5 mm thickness which are further insulated by glass wool or ceramic wool with thickness ranging up to 50 mm. After this, Bitumen Sprayer is covered by 18 gauge G.I. Sheets.

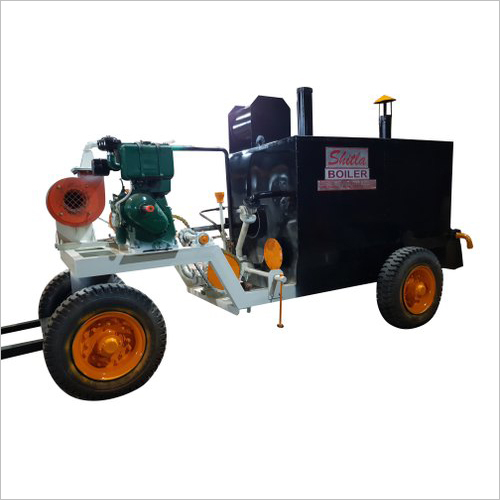

The Bitumen Spraying Machine, which we offer, is applicable during construction of roads and other construction projects, where the use of bitumen is required. The blowers and burners installed in these sprayers are used to maintain the heat which prevents the bitumen from solidifying. These sprayers can be operated continuously for a long time as these can contain a huge capacity of bitumen. The nozzle of the sprayers is connected to a bitumen pump for easy spraying at variable speeds. Furthermore, we are able to offer the Bitumen Sprayer which is fitted with wheels for easy mobility for vast road construction.
Bitumen Spraying Machine Specifications:
1) MODEL : SRE 2500
2) Tank Capacity : 25000 Ltr
3) Insulation : 50 mm
4) Man Hole : 450 mm
5) Shape : U Shape / Rectangular Shape
6) Mountings : Self chassis mounted on wheels
7) Pipe Length & Type : 3 mtr.Lg. & S.S. Corrugated Pipe
8) Bitumen Pump : 1 1/2 inch x 1 1/2 inch Positive displacement Pump
9) Air Compressor / Blower : 3 HP Standard make / 5 HP
10) Engine : 8 HP Air Cooled diesel engine
11) Pneumatic Gear : Size - 7.50 x 16
12) Burner : Fuel consumption 7-8 Litr./Hr.
13) Reduction Gear : Heavy duty Worm Gear
14) Engine Fuel Tank Cap. : 5 Litres
15) Burner Fuel tank Cap. : 20 Litres
16) Hand Spray Nozzle : Available
17) Fuel : Diesel
18) Wheel base : 2310mm
19) Spray Nozle : Single spray Nozzle
20) Dimension : as per order
21) Total weight : 4800kg approx.
22) Tank capacity : 2500L approx
23) Spray width : 2000mm approx.
24) Max. Power (kw/r/min) : 92/2800
25) Engine : 8 HP air cooled engine
26) Pneumatic types size : 900 x 20
27) S.S. corrugated pipe : 3 mtr. length
28) Capacity : Blower 5 HP capacity & optional air compressor
29) Tank Structure : Stainless steel out cover and convenient for cleaning
Other Products in 'Bitumen Sprayer' category
Our export markets include Africa, Nepal, Bangladesh, Bhutan and UAE.
