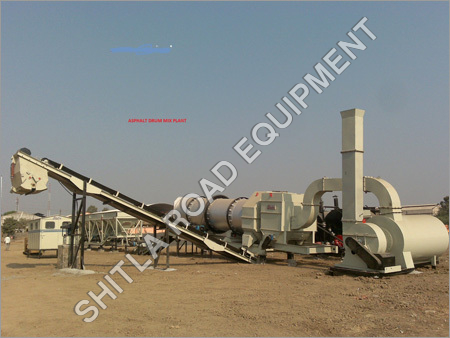

Hot Mix Plant

Our organization is established among the leading manufacturer, supplier and exporter of robustly-built Hot Mix Plant. High grade raw material is used that are procured from dependable sources of the market, in the fabrication process of this plant. Advanced technology and techniques is being employed in the fabrication of this plant in order to attain complete customer satisfaction. As per the variegated requirements of clients, this plant is made available in different capacities like 20TPH to 120TPH, models and specifications. It is thoroughly checked on various parameters to ensure optimum functionality.

The Hot Mixing Plant is used to heat and mix aggregates & liquid asphalt cement in measured quantities. It consists of a single burner fitted to the discharge end of the drying cylinder. It discharges heated aggregate into the storage ring, which is supported on two roller tracks running on 4 nos. guide rollers and is driven by chain and sprocket wheel. To discharge the aggregates, a bucket elevator is provided for convenient transfer. Furthermore, the hot aggregates in the Mixing Plant are discharged into the batching chute with the help of lifting buckets.

1) Exhaust drive motor : 7.5,10,20 HP

2) Fuel tank capacity : 1500,2000 Litres

3) Bitumen Gearbox : Heavy duty worm gear

4) Exhaust drive motor : 7.5,10,20 HP

5) Exhaust drive motor : SMSR

6) Auxiliary conv. Gearbox : 7.5,10,20 HP

7) Storage capacity : 20,31,41tr

8) GOH Hoper capacity : 500,650 Kg

9) Gathering drive motor : 5 HP

10) Conveyor Belt : 500 mm width

11) Bitumen drive motor : 3,5 HP

12) Hyd. Power pack : 2 HP

13) No. of Bin : 2,3,4

1) Four Bin Feeder

2) Slinger conveyor

3) Vibrating screen

4) Bitumen tank

5) Cabin with panel board

6) Filler Unit

7) Thermo drum unit

8) Fuel tank/LDO Tank

9) Load out conveyor with GOB Hopper
